  [Uncompensated Packages] SMD Series Surface-Mountable
  ±Û¾´ÀÌ : ´ÙÀÏIBC     ³¯Â¥ : 11-12-15 12:56     Á¶È¸ : 10994


(Piezoresistive Pressure Sensors / Uncompensated Packages, ¾ÐÀúÇ×½Ä ¾Ð·Â¼¾¼­)

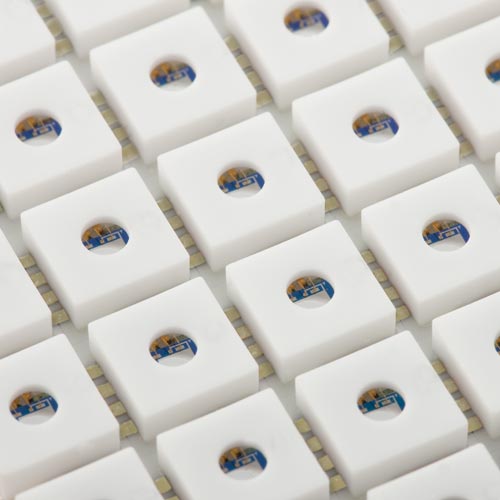

The SMD Series is a surface-mountable device suitable for high-volume, low to medium pressure applications.

Overview
Features
Range      : 5 to 500+ psi (.34 to 34.5+ bar; 34.5 to 3,447 KPa)
Type        : Absolute, gage, differential and vacuum
Media      : Clean, dry air and non-corrosive gases
Packaging : Substrates, covers, gels, etc.
Flexibility : Sensitivity, resistance, bridge, constraint, etc.
Benefits
Performance : Enjoy best-in-class performance due to Merit¡¯s proprietary Sentium technology
Cost     : Save money over time with high-performing die
Security : Feel confident doing business with an experienced company backed
                  by a solid parent company (NASDAQ: MMSI)
Speed    : Get to market quickly with creative and flexible solutions.
Service   : Experience prompt, personal and professional support.

Specifications
Parameter Minimum Typical Maximum Units Notes
Electrical & Environmental
Excitation ¡¡ 5 15 V Maximum: 3mA
Impedance 4000 5000 6000 ¥Ø Optional: 3,500 +/- 500
Operating Temperature -40 ¡¡ 85 ¡ÆC Sentium¢ç technology
Storage Temperature -55 ¡¡ 160 ¡ÆC ¡¡
Performance
Offset -10 0 10 mV/V Zero pressure; gage only; @25¡ÆC
Non-linearity -0.2 0 0.2 % FSO Best Fit Straight Line; @25¡ÆC
Pressure Hysteresis -0.1 0 0.1 % FSO @25¡ÆC
Temp Coeff - Zero -25 0 25 µV/V/¡ÆC -40¡ÆC to 85¡ÆC
Temp Coeff - Resistance 2300 2800 3300 PPM/¡ÆC -40¡ÆC to 85¡ÆC
Temp Coeff - Sensitivity -1500 -2200 -2500 PPM/¡ÆC -40¡ÆC to 85¡ÆC
Thermal Hysteresis -0.2 0 0.2 % FSO Zero pressure
Burst Pressure 2X ¡¡ ¡¡ ¡¡ Full scale pressure
Full-Scale Output (@ 5 volts) Other outputs available upon request
5 psi (.34 bar; 34.5 KPa) 60 75 90 mV ¡¡
15 psi (1 bar; 103 KPa) 125 150 175 mV ¡¡
100 psi (6.9 bar; 689 KPa) 120 150 180 mV ¡¡
300 psi (20.7 bar 2068 KPa) 120 150 180 mV ¡¡
500 psi (34.5 bar 3447 KPa) 140 175 210 mV ¡¡


 Part Details

Dimensions & Electrical (millimeters)

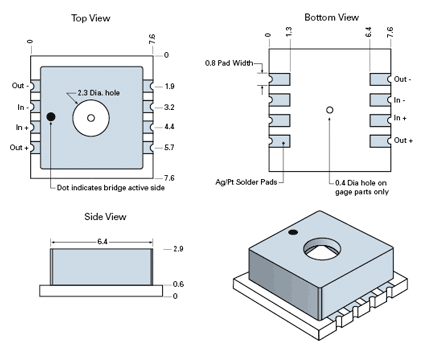

Gage With Square Cap

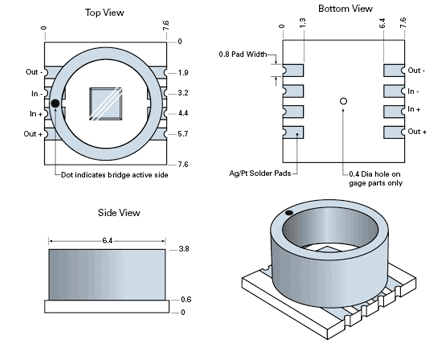

  Gage With Chimney

 Absolute and Gage available

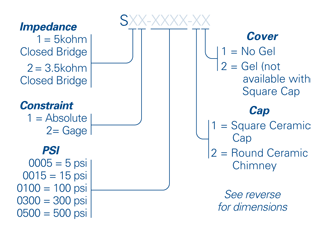

 Part Number Configurator

Example:
S11-0015-11 offers 5kohm Impedance, Closed Bridge, Absolute Constraint,
5 psi, Square Ceramic Cap, No Gel

Standard Part Numbers

S11-0005-11

S11-0005-21

S21-0005-21

S11-0015-11

S11-0015-21

S21-0015-21

S11-0100-11

S11-0100-21

S21-0100-21

S11-0300-11

S11-0300-21

S21-0300-21

S11-0500-11

S11-0500-21

S21-0500-21

S12-0005-11

S12-0005-21

S22-0005-21

S12-0015-11

S12-0015-21

S22-0015-21

S12-0100-11

S12-0100-21

S22-0100-21

S12-0300-11

S12-0300-21

S22-0300-21

S12-0500-11

S12-0500-21

S22-0500-21

S21-0005-11

S11-0005-22

S21-0005-22

S21-0015-11

S11-0015-22

S21-0015-22

S21-0100-11

S11-0100-22

S21-0100-22

S21-0300-11

S11-0300-22

S21-0300-22

S21-0500-11

S11-0500-22

S21-0500-22

S22-0005-11

S12-0005-22

S22-0005-22

S22-0015-11

S12-0015-22

S22-0015-22

S22-0100-11

S12-0100-22

S22-0100-22

S22-0300-11

S12-0300-22

S22-0300-22

S22-0500-11

S12-0500-22

S22-0500-22
