  [Passive Compensated Packages] BP Series Disposable Medical, Compensated
  글쓴이 : 다일IBC     날짜 : 11-12-15 19:10     조회 : 5132


(Piezoresistive Pressure Sensors / Blood Pressure Packages, 압저항식 압력센서)


The BP Series is ideal for high-volume, disposable medical applications and is compliant with the AAMI BP22 specification for blood pressure monitoring.


Overview


Features
  • Pressure range of -30 to 300 mmHg
  • Excellent Burst Pressure
  • Compliant with AAMI BP22 specifications
  • Dielectric gel barrier
  • Fully Tested
  • Small, disposable, low-cost package
  • Temperature Compensated
  • Solid state piezoresistive sensor
  • Top side pressure entry
  • Easy to install into customer’s disposable blood pressure device housing
  • Compatible with automated assembly equipment
  • Compatible in air, gas and liquid
  • Shipped as 120UP snapstrates or on tape and reel
  • Automated testing and assembly
  • Custom Options Available
  • Engineering, design and manufacturing under one roof in Utah, US.

Features
  • Disposable Blood Pressure measurement
  • Kidney Dialysis Machines
  • Infusion Pumps
  • Surgical Procedures
Applications

Merit Sensor Systems, Inc. has partnered with customers for more than 20 years to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications.

Merit Sensor offers full-service design capabilities, in-house wafer fabrication, flexible shipping, packaging and assembly, piezoresistive technology (PRT), expansive pressure ranges (0.15 psi to 15,000 psi), complete pressure measurement (absolute, gage, differential and vacuum) and unmatched operating temperature range (-40°C to 150°C) via our Sentium® process. Additionally, Merit Sensor is able to provide unparalleled flexibility to customize pressure sensing solutions to fit into our customers’ applications.

Unlike other pressure sensor suppliers, Merit Sensor can provide customers with completely customized pressure sensor designs with large or smaller/limited production runs. Our customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and rely on Merit Sensor for highly stable and sensitive MEMS sensing elements (bare die), to customers who have little to no experience in the pressure sensing world and look to Merit Sensor to assist with a completely custom design and implementation of a pressure sensor that best fits their application.

At Merit Sensor our engineers are application experts. We are ready to help customers design your application to work with a pressure sensor, and/or design a customized pressure sensing solution that works for your application. If you are unsure whether a pressure sensor is right for your application, Merit Sensor can help you make that determination.


Specifications

Parameter
Minimum Typical Maximum Units Notes
General
Pressure Range -30   300 mmHg
Overpressure 125     PSI
Electrical (22°C unless otherwise stated)
Input Excitation 1   10 VDC Calibrated to 6 VDC
Risk Current     2 µA Previously qualified, not tested in production
Input Impedance 1,200   3,000 Ω
Output Impedance 285   315 Ω
Dielectric Breakdown 10,000   VDC   Previously qualified, not tested in production
Environmental
Temp (Comp/Operating) 15   40 °C
Temperature (Storage) -25   70 °C
Humidity 10   90 %
Light Sensitivity     1 mmHg Previously qualified, not tested in production – Per AAMI BP22
Operating Product Life 168     Hours
Shelf Life 3     Years
Sterilization (ETO) 3     Cycles Sterilization performed by customer
Mechanical
Weight     2 Grams
Volume Displacement     0.02 mm3
Media Interface         Medical grade, dielectric gel
Gel Tube Interface Material         Polycarbonate
Performance
Assumes 6 VDC, 22°C and after five second warm-up unless otherwise specified.
Offset -25 0 25 mmHg Zero
Sensitivity 4.95 5 5.05 µ/V/V/mmHg
Calibration 97.5 100 102.5 mmHg Output of sensor with no pressure applied and a 150 KΩ resistor shorted across + IN to + OUT
Symmetry     5 %
Accuracy (-30 to 50 mmHg) -1 mmHg -1% of Reading 0 +1mmHg +1% of Reading   Combined effect of sensitivity, repeatability, nonlinearity and hysteresis errors. Per AAMI BP22
Accuracy (50 to 300 mmHg) -3 0 3 % output Combined effect of sensitivity, repeatability, nonlinearity and hysteresis errors. Per AAMI BP22
Temp Coeff – Zero -0.3 0 0.3 mmHg/°C Over a temperature range of 15°C to 40°C.
Temp Coeff – Sensitivity -0.1 0 0.1 %/°C Over a temperature range of 15°C to 40°C.
Frequency Response 1,200     Hz Previously qualified, not tested in production
Phase Shift     5 degrees Previously qualified, not tested in production
Offset Drift     1 mmHg/8 hrs Normalized offset/bridge voltage – 8 hours after 20 second warm-up, Previously qualified, not tested in production

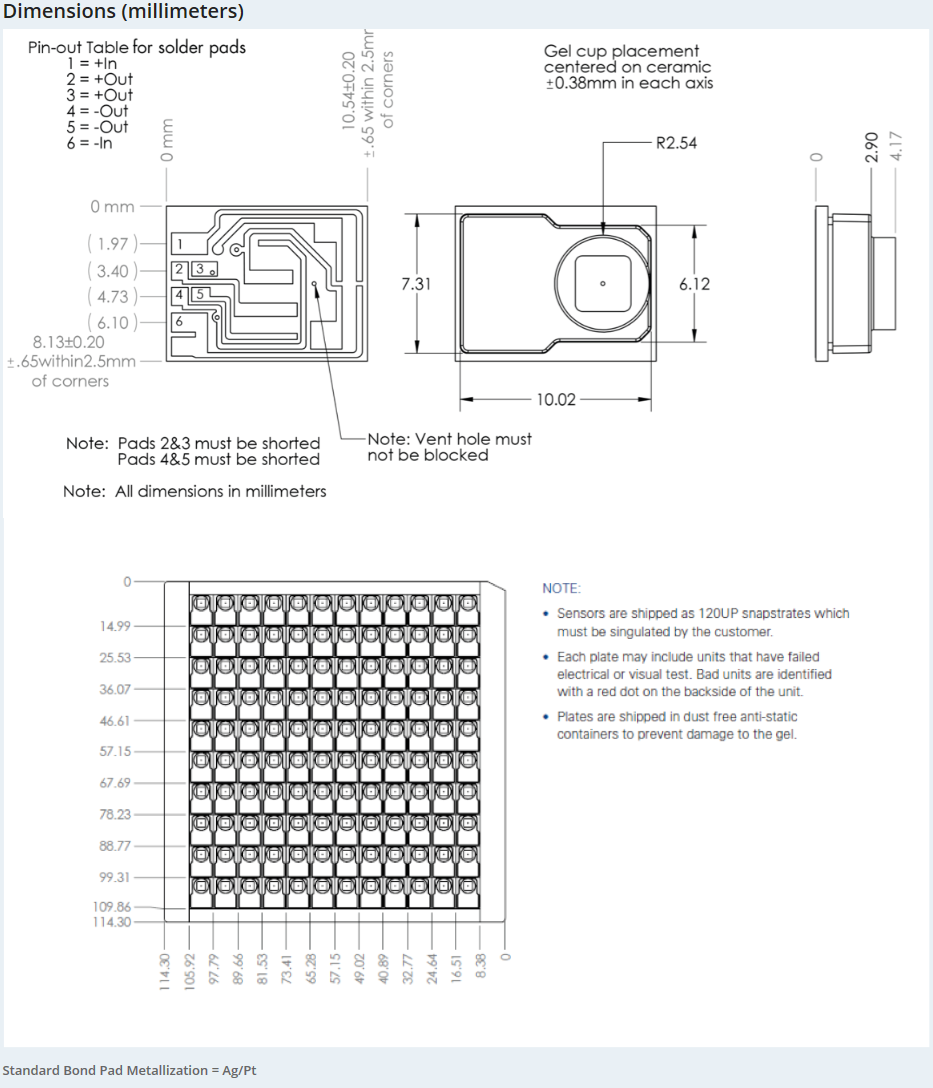

Part Details
