  [Compensated Packages] LP Series – Ultra-Low Pressure
  글쓴이 : 다일IBC     날짜 : 15-11-08 12:31     조회 : 3359
(Piezoresistive Pressure Sensors / 압저항식 압력센서)


Overview

Features

Range                     0.15 to 1 psi (10.3 to 68.9 mbar; 1 to 6.9 KPa; 4.2 to 27.7 in H2O)
Type                        Differential or Gage
Media                      Non-corrosive gases
Packaging              Tape & Reel
Temperature               -40 to +85° C
Benefits               Excellent linearity, hysteresis, and stability
                                Dual cap configurations (horizontal / vertical port); 8-pin SMT


Typical Applications


Industrial         Air Flow (ΔΡ)
                          Air Pressure (filter conditions)
                          Static Pressure (HVAC systems)
                          HVAC control unit (indoor)
                          Sensors / transmitters
Medical          Air flow (spirometers, ventilator)
                          Gas flow / pressure (respiratory)
                          Air pressure (nebulizers)

Uncompensated

Output             mVolt
Temperature    -40 to +85° C


Compensated (P+T)
Output              Analog or I2C
Temperature     -40 to +85° C
Accuracy            < ± 2.5%


Options

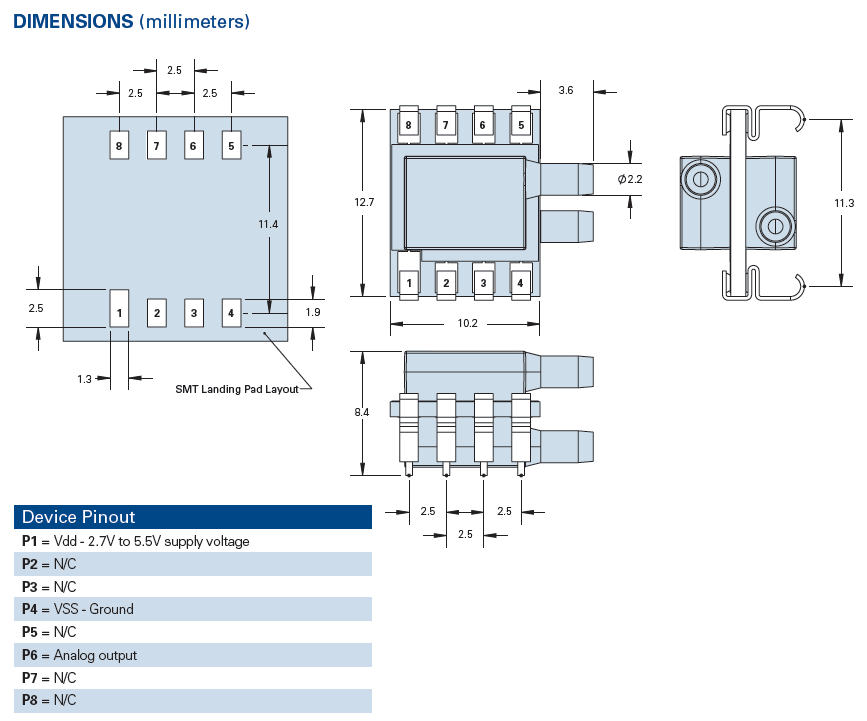

Dual Horizontal Port                                      Vertical Port
Differential 8-pin SMT package                                    Gage 8-pin SMT package





Specifications & Part Details

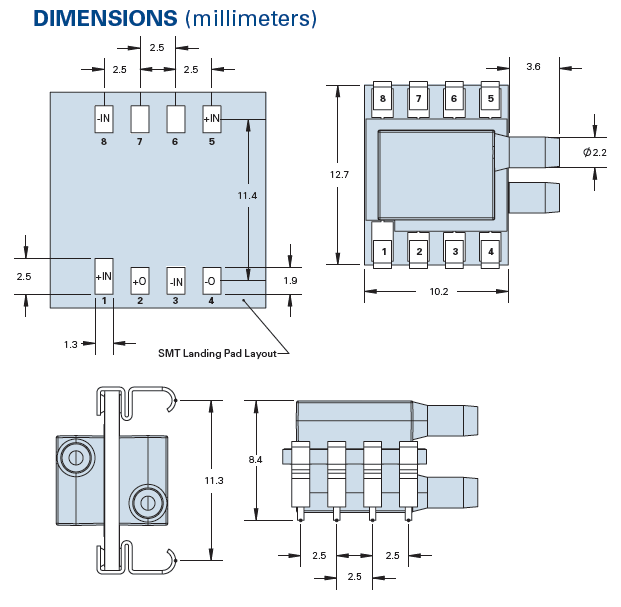

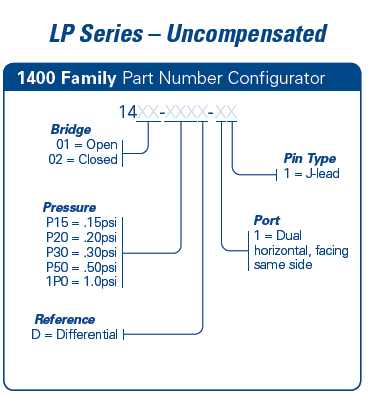

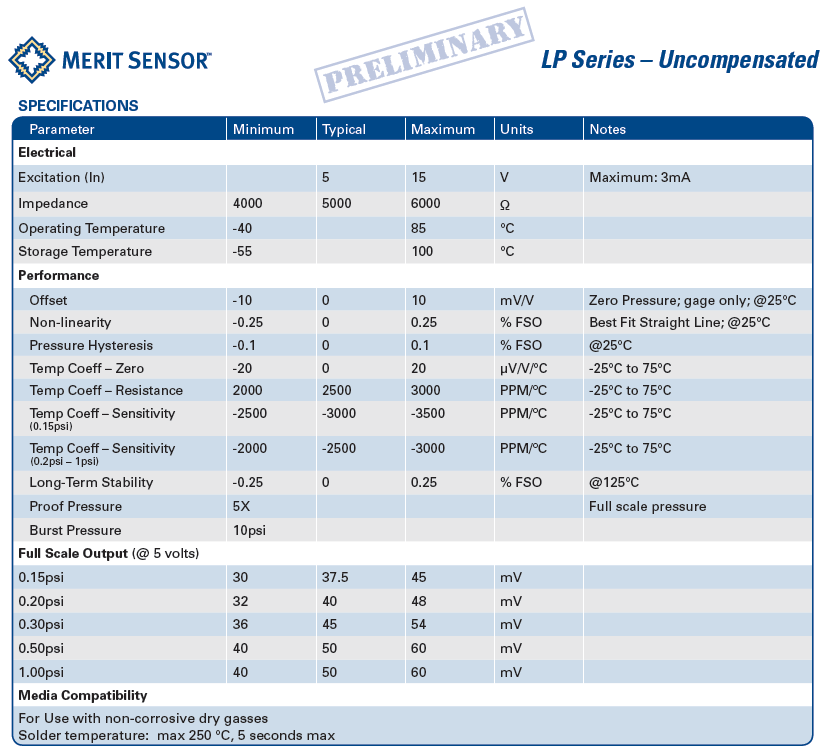

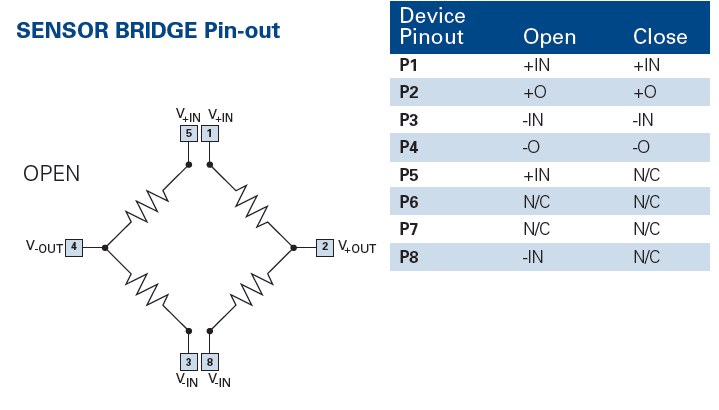

I. Uncompensated

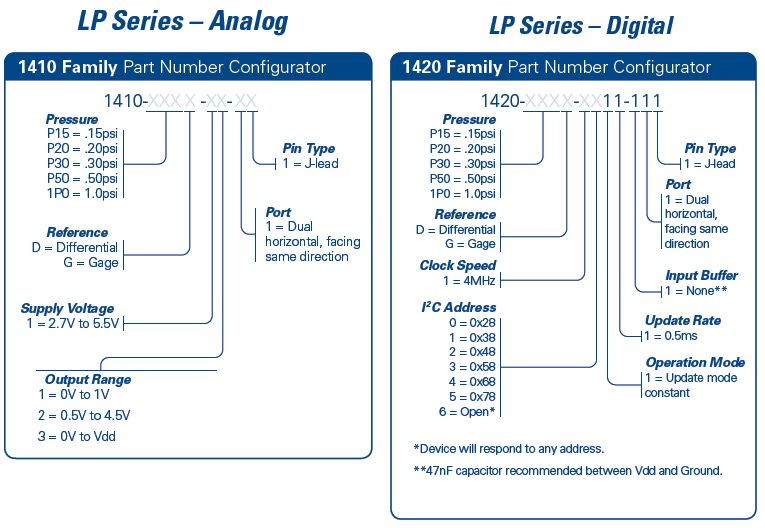

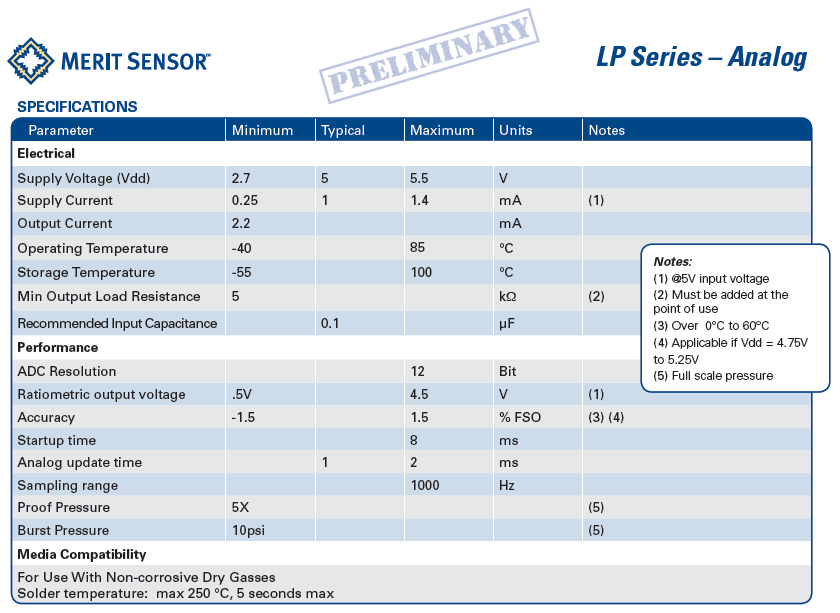

II. Compensated - Analog

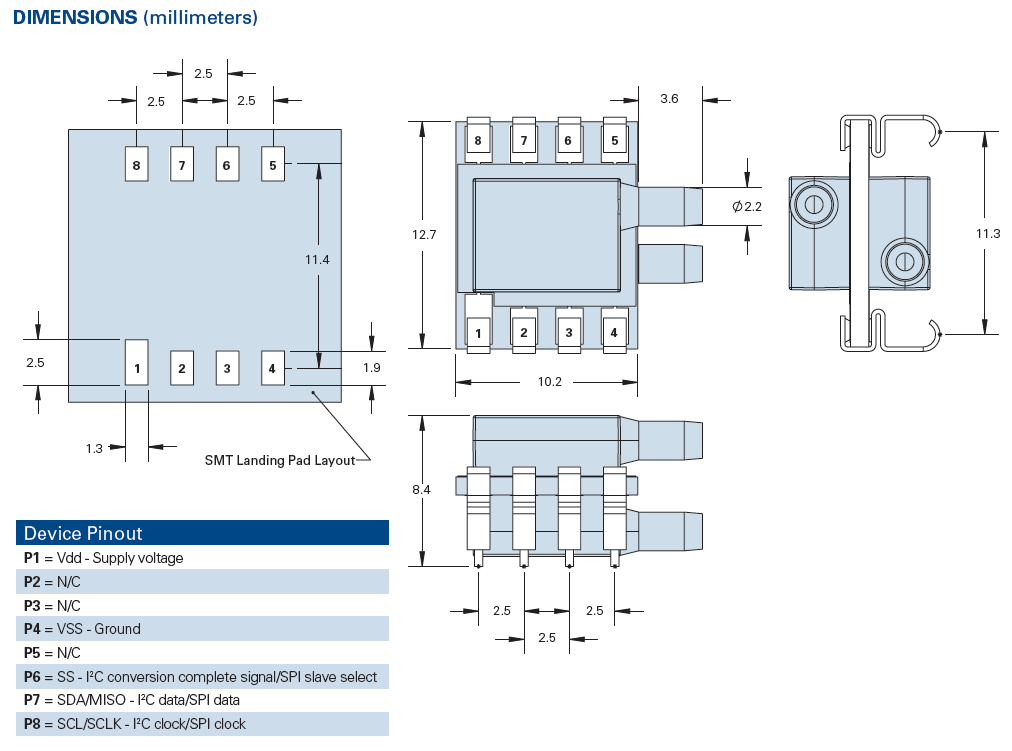

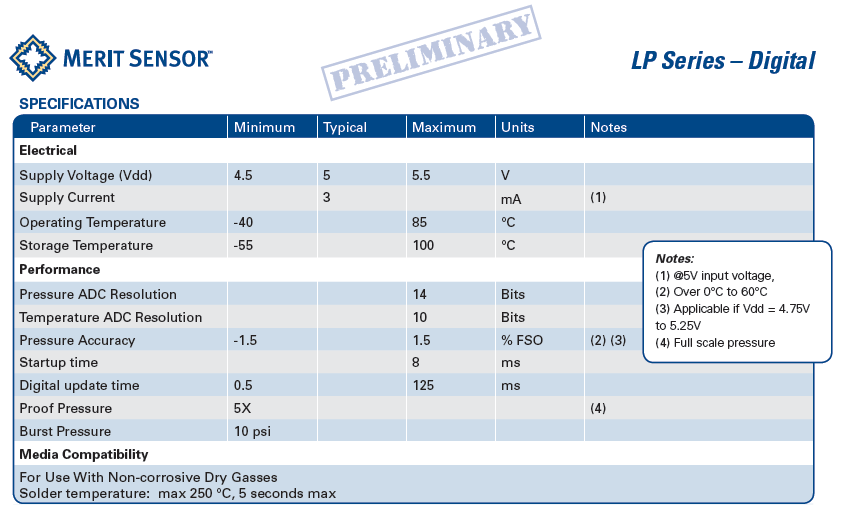

 II. Compensated - Digital







Applications



Merit Sensor Systems, Inc. has partnered with customers for more than 20 years to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications.

Merit Sensor offers full-service design capabilities, in-house wafer fabrication, flexible shipping, packaging and assembly, piezoresistive technology (PRT), expansive pressure ranges (0.15 psi to 15,000 psi), complete pressure measurement (absolute, gage, differential and vacuum) and unmatched operating temperature range (-40°C to 150°C) via our Sentium® process. Additionally, Merit Sensor is able to provide unparalleled flexibility to customize pressure sensing solutions to fit into our customers’ applications.

Unlike other pressure sensor suppliers, Merit Sensor can provide customers with completely customized pressure sensor designs with large or smaller/limited production runs. Our customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and rely on Merit Sensor for highly stable and sensitive MEMS sensing elements (bare die), to customers who have little to no experience in the pressure sensing world and look to Merit Sensor to assist with a completely custom design and implementation of a pressure sensor that best fits their application.

At Merit Sensor our engineers are application experts. We are ready to help customers design your application to work with a pressure sensor, and/or design a customized pressure sensing solution that works for your application. If you are unsure whether a pressure sensor is right for your application, Merit Sensor can help you make that determination.
