  [Uncompensated Packages] RPD Series – Backside Pressure
  글쓴이 : 다일IBC     날짜 : 15-11-08 14:20     조회 : 2974
(Piezoresistive Pressure Sensors / 압저항식 압력센서)

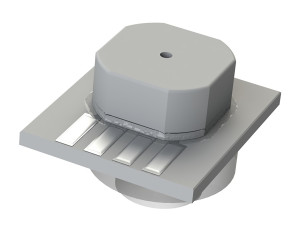

RPD Series – Backside Pressure
The RPD Series is a flexible platform with excellent media compatibility designed for a wide range of pressures to the backside of the sensing element.



Overview

Features

Range 15 psi to 500 psi (1 to 34.5 mbar; 103 to 3447 KPa)
Temperature -40˚C to +85 ˚C
Type Gage and Absolute
Media Air, gases and liquids

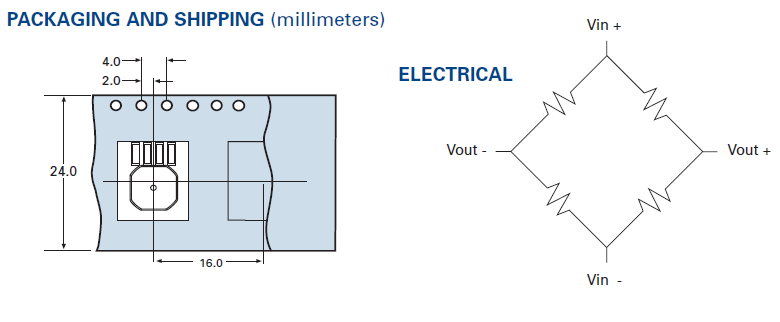

Shipping Tape and reel

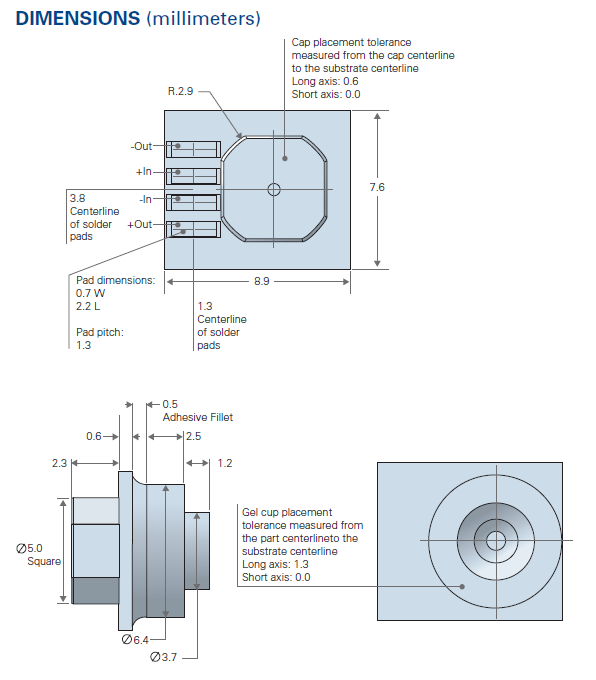

Size 7.6 x 8.9 x 6.6 mm


Benefits

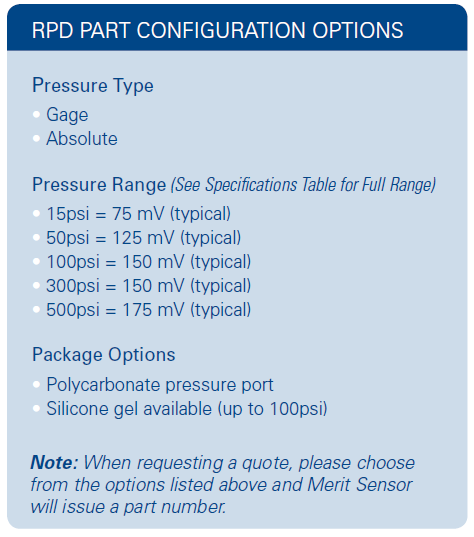

  • Customization: Pressure range, pressure port, gage or absolute and soldier pins
  • Excellent performance in both constant current and constant voltage applications
  • Simple pressure attachment and electrical connection
  • Designed for a soldered connection to wires, ribbon cable, or flex strip
  • Typical Applications
  • Medical inflation
  • Water Pressure and flow management
  • Industrial process control
  • Applications



    Merit Sensor Systems, Inc. has partnered with customers for more than 20 years to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications.

    Merit Sensor offers full-service design capabilities, in-house wafer fabrication, flexible shipping, packaging and assembly, piezoresistive technology (PRT), expansive pressure ranges (0.15 psi to 15,000 psi), complete pressure measurement (absolute, gage, differential and vacuum) and unmatched operating temperature range (-40°C to 150°C) via our Sentium® process. Additionally, Merit Sensor is able to provide unparalleled flexibility to customize pressure sensing solutions to fit into our customers’ applications.

    Unlike other pressure sensor suppliers, Merit Sensor can provide customers with completely customized pressure sensor designs with large or smaller/limited production runs. Our customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and rely on Merit Sensor for highly stable and sensitive MEMS sensing elements (bare die), to customers who have little to no experience in the pressure sensing world and look to Merit Sensor to assist with a completely custom design and implementation of a pressure sensor that best fits their application.

    At Merit Sensor our engineers are application experts. We are ready to help customers design your application to work with a pressure sensor, and/or design a customized pressure sensing solution that works for your application. If you are unsure whether a pressure sensor is right for your application, Merit Sensor can help you make that determination.


    Specifications

    General

    Parameter
    Minimum Typical Maximum Units Notes
    Electrical & Environmental
    Excitation (In)   5 15 V Maximum: 3 mA
    Impedance 4000 5000 6000 Ω Optional: 3,500 +/- 500
    Operating Temperature -40   85 °C Sentium® technology
    Storage Temperature -55   100 °C
    Performance
    Offset -10 0 10 mV/V Zero pressure; gage only; @25°C
    Non-linearity -0.2 0 0.2 % FSO Best Fit Straight Line; @25°C
    Pressure Hysteresis -0.1 0 0.1 % FSO @25°C
    Temp Coeff – Zero -25 0 25 μV/V/°C -40°C to 85°C
    Temp Coeff – Resistance 2300 2800 3300 PPM/°C -40°C to 85°C
    Temp Coeff – Sensitivity -1500 -2200 -2500 PPM/°C -40°C to 85°C
    Thermal Hysteresis -0.1 0 0.1 % FSO Zero pressure
    Burst Pressure 2X       Room Temperature
    Full-Scale Output (@ 5 volts Excitation)
    15 psi (1 bar; 103 KPa) 60 75 90 mV Closed bridge only
    50 psi (3.4 bar; 345 KPa) 100 125 150 mV
    100 psi (6.9 bar; 689 KPa) 120 150 180 mV
    300 psi (20.7 bar; 2068 KPa) 120 150 180 mV
    500 psi (34.5 bar; 3447 KPa) 140 175 210 mV
    * The combined effect of Sensitivity, Repeatability, Nonlinearity, and Hysteresis errors over the temperature range of 25°C to 15°C, and 25°C to 40°C, expressed as a percent of Full Scale pressure (%FS).
