  [MEMS Sensing Elements] L Series – Low Pressure
  ±Û¾´ÀÌ : ´ÙÀÏIBC     ³¯Â¥ : 15-11-08 14:48     Á¶È¸ : 9179
(Piezoresistive Pressure Sensors / ¾ÐÀúÇ×½Ä ¾Ð·Â¼¾¼­)


L Series – Low Pressure


The L Series, Low Pressure MEMS sensor chip is an ultra-sensitive and stable pressure sensor, ideal for low-pressure OEM applications such as medical and industrial process control.






Overview

Features

Range                   0.15 to 5 psi (10 to 345 mbar; 1 to 34.5 KPa)
Temperature      Wide Operating temperature range (up to 150¡Æ C)
Type                 Gage and Differential
Media                Clean, dry air and non-corrosive gases
Shipping            Wafers on tape
Flexibility           Sensitivity, resistance, bridge, constraint, etc.
Size                  3.3 x 3.3mm


Benefits

Performance   Enjoy best-in-class performance due to Merit¡¯s proprietary Sentium technology
Cost               Save money over time with high-performing die
Security          Feel confident doing business with an experienced company backed by a solid
                           parent company (NASDAQ: MMSI)
Speed            Get to market quickly with creative and flexible solutions.
Service           Experience prompt, personal and professional support.


Applications



Merit Sensor Systems, Inc. has partnered with customers for more than 20 years to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications.

Merit Sensor offers full-service design capabilities, in-house wafer fabrication, flexible shipping, packaging and assembly, piezoresistive technology (PRT), expansive pressure ranges (0.15 psi to 15,000 psi), complete pressure measurement (absolute, gage, differential and vacuum) and unmatched operating temperature range (-40¡ÆC to 150¡ÆC) via our Sentium¢ç process. Additionally, Merit Sensor is able to provide unparalleled flexibility to customize pressure sensing solutions to fit into our customers¡¯ applications.

Unlike other pressure sensor suppliers, Merit Sensor can provide customers with completely customized pressure sensor designs with large or smaller/limited production runs. Our customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and rely on Merit Sensor for highly stable and sensitive MEMS sensing elements (bare die), to customers who have little to no experience in the pressure sensing world and look to Merit Sensor to assist with a completely custom design and implementation of a pressure sensor that best fits their application.

At Merit Sensor our engineers are application experts. We are ready to help customers design your application to work with a pressure sensor, and/or design a customized pressure sensing solution that works for your application. If you are unsure whether a pressure sensor is right for your application, Merit Sensor can help you make that determination.

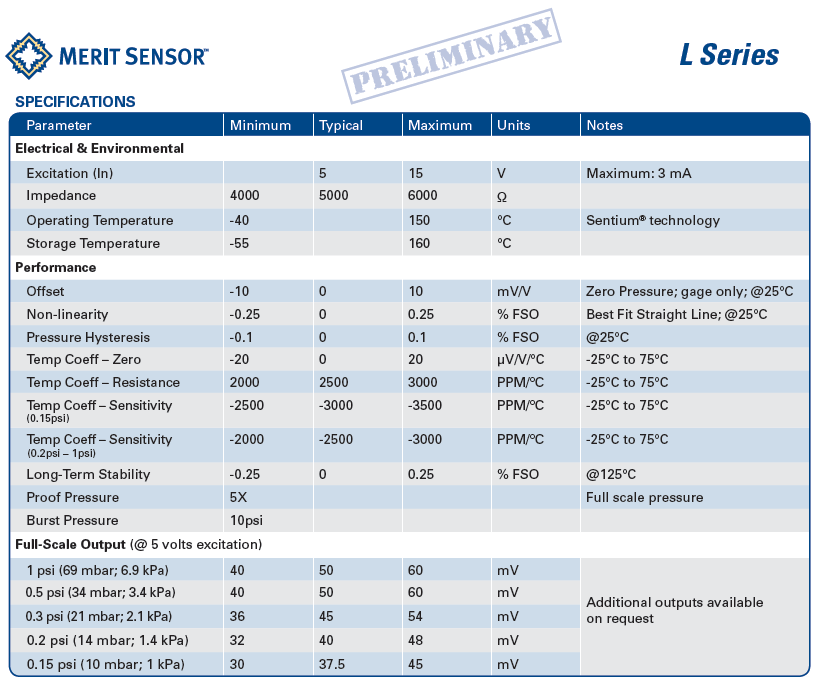

Specifications

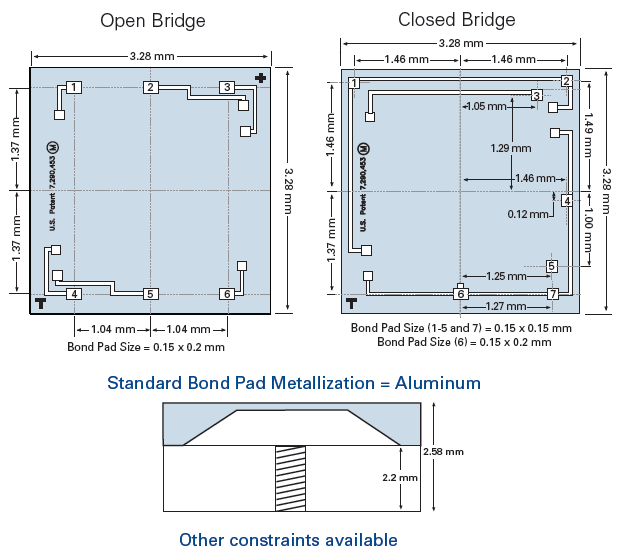

Dimensions ( millimeters, post-cut)

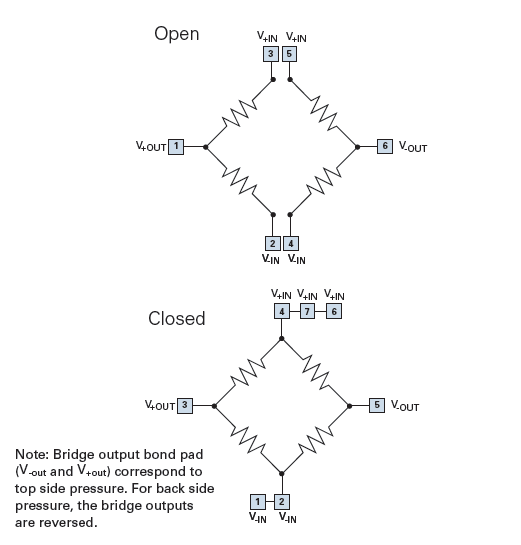

Electrical
