  [MEMS Sensing Elements] K Series – High Pressure
  글쓴이 : 다일IBC     날짜 : 15-11-08 15:11     조회 : 2781
(Piezoresistive Pressure Sensors / 압저항식 압력센서)

K Series – High Pressure

The K Series is ideal for high-volume, high-pressure OEM applications.







Overview

Features

Range          1,000 to 15,000 psi (68.9 to 1,034 bar; 6,895 to 103,421 KPa)
Type            Absolute
Media           Clean, dry air and non-corrosive gases
Shipping        Wafers on tape
Flexibility       Sensitivity, resistance, bridge, constraint, etc.


Benefits

Performance     Enjoy best-in-class performance due to Merit’s proprietary Sentium technology
Cost                Save money over time with high-performing die
Security           Feel confident doing business with an experienced company backed by a solid parent
                           company (NASDAQ: MMSI)
Speed             Get to market quickly with creative and flexible solutions.
Service            Experience prompt, personal and professional support.


Applications




Merit Sensor Systems, Inc. has partnered with customers for more than 20 years to design, fabricate, assemble and package reliable, cost-effective piezoresistive pressure sensor solutions for automotive, medical, industrial, aviation, defense and consumer applications.

Merit Sensor offers full-service design capabilities, in-house wafer fabrication, flexible shipping, packaging and assembly, piezoresistive technology (PRT), expansive pressure ranges (0.15 psi to 15,000 psi), complete pressure measurement (absolute, gage, differential and vacuum) and unmatched operating temperature range (-40°C to 150°C) via our Sentium® process. Additionally, Merit Sensor is able to provide unparalleled flexibility to customize pressure sensing solutions to fit into our customers’ applications.

Unlike other pressure sensor suppliers, Merit Sensor can provide customers with completely customized pressure sensor designs with large or smaller/limited production runs. Our customers range from pressure sensor transducer manufacturers who are already experts in pressure sensing technology and rely on Merit Sensor for highly stable and sensitive MEMS sensing elements (bare die), to customers who have little to no experience in the pressure sensing world and look to Merit Sensor to assist with a completely custom design and implementation of a pressure sensor that best fits their application.

At Merit Sensor our engineers are application experts. We are ready to help customers design your application to work with a pressure sensor, and/or design a customized pressure sensing solution that works for your application. If you are unsure whether a pressure sensor is right for your application, Merit Sensor can help you make that determination.



Specifications (Preliminary)


Parameter
Minimum Typical Maximum Units Notes
Electrical & Environmental
Excitation   5 15 V Maximum: 3mA
Impedance 4000 5000 6000 Ω Optional: 3,500 +/- 500
Operating Temperature -40   150 °C Sentium® technology
Storage Temperature -55   160 °C
Performance
Offset -10 0 10 mV/V Zero pressure; gage only; @@25°C
Non-linearity -0.15 0 0.15 % FSO Best Fit Straight Line; @@25°C
Pressure Hysteresis -0.05 0 0.05 % FSO @@25°C
Temp Coeff – Zero -25 0 25 µV/V/°C -40°C to 150°C
Temp Coeff – Resistance 2300 2800 3300 PPM/°C -40°C to 150°C
Temp Coeff – Sensitivity -1500 -2200 -2500 PPM/°C -40°C to 150°C
Thermal Hysteresis -0.1 0 0.1 % FSO Zero pressure
Long-Term Stability -0.1 0 0.1 % FSO
Burst Pressure 3X       Full scale pressure
Full-Scale Output (@@ 5 volts) Other outputs available upon request
1,000 psi (68.9 bar; 6,895 KPa) 125 150 175 mV
5,000 psi (345 bar 32,474 KPa) 125 150 175 mV
10,000 psi (689 bar 68,948 KPa) 125 150 175 mV
15,000 psi (1034 bar 103,4218 KPa) 125 150 175 mV



Part Details

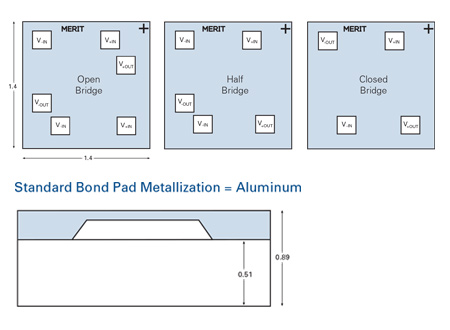

Dimensions (millimeters, post-cut)

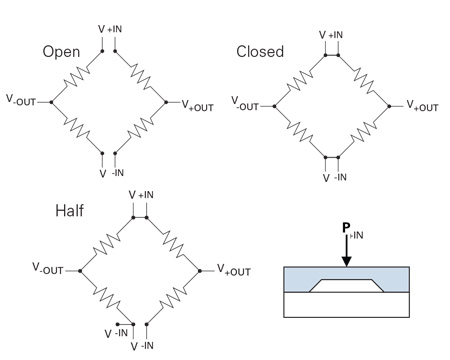

Electrical

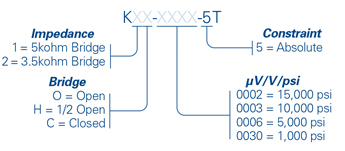

Part Number Configurator




Example: K1O-0003-5T offers 5kohm Impedance, Open Bridge, 10,000 psi and Absolute Constraint



Standard Part Numbers

K1O-0002-5T
K1O-0003-5T
Note: “T” in part number = sawn wafer on tape in metal frame
